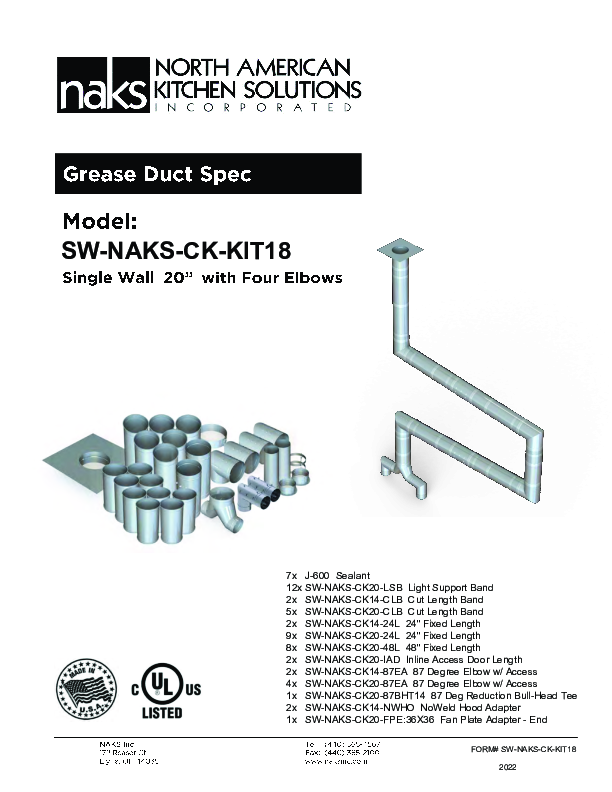

20"- Single Wall Kit,Two 14" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections Fan Connections

Ductwork Includes:

• Recommended Duct Sizes Heavy Duty Hood Lengths 12'-15'5"
• Recommended Duct Sizes Medium Duty Hood Lengths 15'6"-20'
• 7x J-600 Sealant
• 12x SW-NAKS-CK20-LSB Light Support Band
• 2x SW-NAKS-CK14-CLB Cut Length Band
• 5x SW-NAKS-CK20-CLB Cut Length Band
• 2x SW-NAKS-CK14-24L 24" Fixed Length
• 9x SW-NAKS-CK20-24L 24" Fixed Length
• 8x SW-NAKS-CK20-48L 48" Fixed Length
• 2x SW-NAKS-CK20-IAD Inline Access Door Length
• 2x SW-NAKS-CK14-87EA 87 Degree Elbow w/ Access
• 4x SW-NAKS-CK20-87EA 87 Degree Elbow w/ Access
• 1x SW-NAKS-CK20-87BHT14 87 Deg Reduction Bull-Head Tee
• 2x SW-NAKS-CK14-NWHO NoWeld Hood Adapter
• 1x SW-NAKS-CK20-FPE:36X36 Fan Plate Adapter - End
• 400 Stainless Steel
• UL1978 Listed
• Limited Lifetime Warranty

Features

• UL-1978 listed grease duct
• 400 Stainless Steel construction
• Made in USA
• Overlapping flange connections
• Field cuttable fixed lengths
• Limited Lifetime Warranty

Overview

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Optional Double Wall Zero Clearance UL-2221. Factory-Built Enclosure listing as an alternate to two layers of field-applied insulation.
