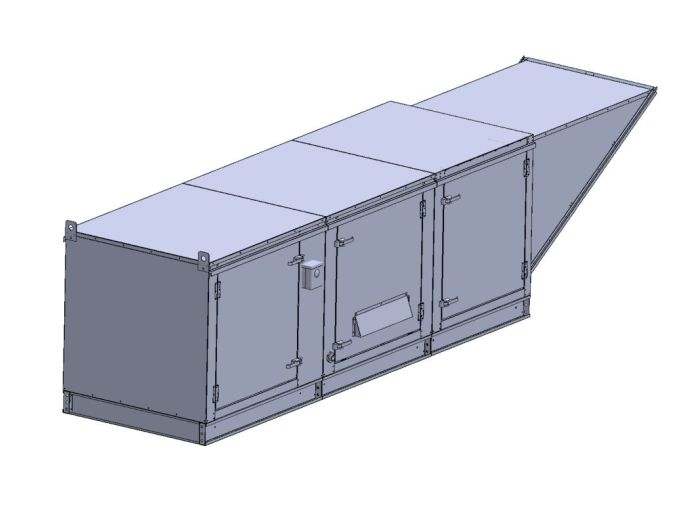

TK4-EVAP-1PH - DIRECT GAS FIRED MAKEUP AIR UNIT/EVAP

Gas-Fired Tempered Make-Up Air Unit with Evaporative Cooler/Maximum 9,600 CFM's, 208-230V, 1-Phase with Motorized Damper and a 20" Blower

• Recommended for hood Sizes 18+
• Gas-Fired Tempered Make-Up Air Unit with Evaporative Cooler
• Adjustable CFM Range 6,000-9,600
• Factory installed VFD - 3PH motor to work with 1PH power.
• Max Temperature Rise of 100 Deg F. 1,036,800 BTU's, Natural Gas/LP Burner
• 5.000 HP, 1 Phase, 208/230V, 60 Hz, ODP (Open Drip Proof)
• 20" Blower.
• Motorized Back-Draft Damper.
• Curb or Indoor Hanging Cradle (Hanging Rods by Others).
• Curb Insulation Available.
• 24 month parts-only warranty.

Features

• Sloped Screened Intake with Washable Metal Mesh Filters
• Discharge Temperature Control - 40-90 degree F (4-32 degree C)
• Made in USA
• 1 1/4" Gas Line Manifold Constructed in Conformance to ANSI Standards
• 24 month parts-only warranty

Overview

Direct Gas-Fired Heater, for use in tempering make-up air. Packages are certified to the ANSI Z83.4a-2001/CSA 3.7a-2001 combined safety standard. One size is available with a max BTU rate of 1,036,800 and 9,600 CFM. Housing constructed of heavy duty G90 galvanized steel • Forward curved centrifugal blower wheel • Vibration isolation • Adjustable drive assemblies • Adjustable motor mount • Ball bearing motors • Heavy duty, pre-lubricated bearings rated for 200,000 hours of operation • Static resistant belts • Service doors on both sides • Horizontal & down discharge • Large intake area ensures low pressure drop across unit • Spring loaded profile plates automatically adjust for any airflow - no manual setting required! • Weatherproof safety disconnect switch • Modular design provides design flexibility • Fully insulated casing. With direct evaporative cooling, outside air is drawn through a water-saturated medium and cooled by evaporation.
