Product Overview

With value-driven design excellence, T-Series direct-fired make up air unit systems offer unsurpassed economy, application versatility, low maintenance durability, and exceptional product support. The line is ETL certified to ANSI standards. With direct evaporative cooling, outside air is drawn through a water-saturated medium and cooled by evaporation

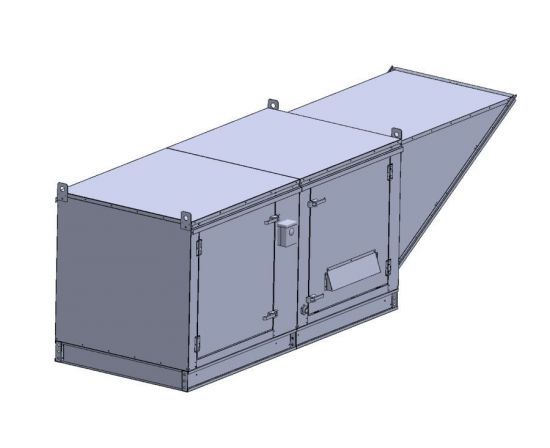

Gas-Fired Tempered Make-Up Air Unit with Evaporative Cooler/Maximum 3400 CFM's, 230V, Single Phase with Motorized Damper and a 10" or 12" Blower

Your Makeup Air Fans Include:

• Supply fan handles a Maximum of 3400 CFM's @ 0.55" S.P.
• 290,000 BTU's. , 75 degree Fahrenheit ( 24 degrees Celsius) Temp Rise
• Made in USA
• 2 HP, 1 Phase, 230V, 60 Hz, 9.0 FLA, ODP (Open Drip Proof)
• Motorized Back-Draft Damper
• Curb - Insulation Available
• Water Pump - 0.166 HP, 1 Phase, 230V, 60 Hz, 1.0 FLA
• Recommended for hood sizes 11' - 13'

Makeup Air Fans Features

• Sloped Clam-shell Air Intake, inlcudes easy to clean Aluminum mesh filters
• Maxitrol Series 14 Discharge Temperature Control - 40-90 degree F (4-32 degree C)
• 1/2" Gas Line Manifold constructed in conformance to ANSI Standards and Industrial Risk Insurers (IRI) insurance requirements
• Limited Warranty - 2 years parts and 90 days labor
