Your Utility Set Include:

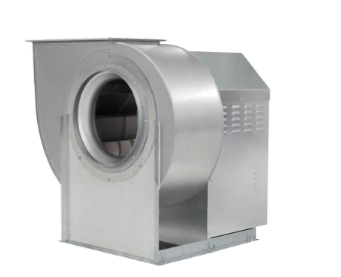

• Direct Drive Utility Set 2,500 CFM, 1.4" SP 1.5HP, 3PH
• Exhaust fan handles a Maximum of 2,500 CFM's @ 1.4" wg ESP
• Made in USA
• CFM Range: 1,000-2,500
• 1.500 HP, 3 Phase, 208/230/460V, 60 Hz, ODP (Open Drip Proof)
• 15" Blower
• Utility Set Grease Cup 24" Discharge Extension Vertical Upper Left Discharge 24" Flanged Grease Duct Inlet Connection
• 24 month parts-only warranty

Your Utility Set Features

• Vented Motor Cover and Continuously Sealed Housing for Added Weather Protection
• Scroll and Motor Compartment Connected for added Structure
• Easily Accessible Clean Out Door and Motor Access from 3 Sides
• Standard 2" Grease Drain
• Standard Emergency Disconnect Switch Temperature Ratings - Aluminum Wheel, 350 degrees F

Your Utility Set Overview

"TK-USBI-RM centrifugal up blast restaurant utility exhaust ventilators are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building. Model TK-USBI-RM is specifically intended for high temperature and heavy grease applications. All models shall be ETL Listed and comply with UL705 (electrical), UL762, and ULC-S645 Standards and CSA Std C22.2, No 113. Fan shall bear the AMCA certified ratings seal for sound and air performance."
