LBMUA-AV NEW INDUSTRY FIRST UL 710-LISTED HOOD WITH INTEGRATED EXHAUST AND SUPPLY FAN & MOTORS AND PRE PIPED ANSUL FIRE SUPPRESSION FOR CONCESSION TRAILERS

• 6' x 40" Low Box All In One Integrated Concession w/Single Exhaust Louver and Fresh Air Supply
• 7" Front 24" Back
• Made in USA
• (1x) Integrated Blower and Motor
• Factory Mounted Grease Duct with Louver and (1x) Integrated Fresh Air Supply
• 20" Stainless Steel Filters
• Built in 6" Air Gap (Available with Zero Clearance Insulation)
• Stainless Steel Grease Cup
• Two Full Length Hanger Rails
• Side Curtains

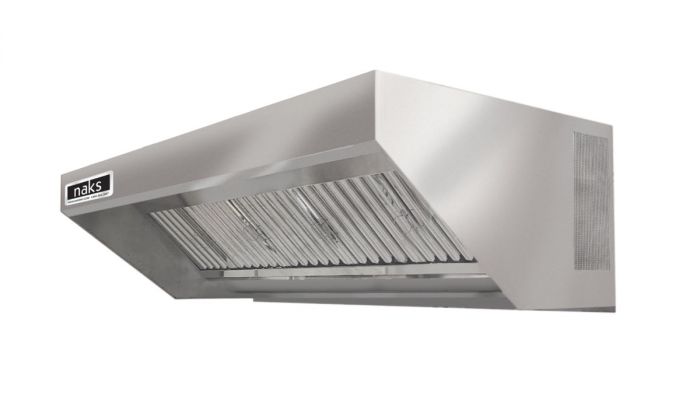

• Hoodmart Stainless Steel Integrated Exhaust Low Box Concession Hood System w/Kidde Fire Suppression

ALL CONCESSION TRAILER HOODS INCLUDE:

• Filters and Stainless Grease Cup
• Integrated Blower(s) and Motor(s)
• Factory Mounted Grease Duct with Louver
• (2x) Full Length Hanging Rails
• Built in 6" Air Gap (Available with Zero Clearance Insulation)
• 1" ceiling enclosure built into top of hood
• Side curtains 23" x 23" x 0"

HOOD PACKAGE GENERAL SPECIFICATIONS:

• Constructed of 430 18 Gauge Stainless Steel
• All joints are welded liquid tight, without seams
• Made in USA
• Hoods are built in accordance with NFPA 96, NSF specifications, and U.L. 710
• Grease trough is made to receive grease extracted by the filters
• Grease filters are 20” UL listed Stainless Steel baffle type
• Each grease trough is equipped with a stainless steel cup
• Factory Mounted Grease Duct with Louver
• (2x) Full Length Hanging Rails
• Built in 6" Air Gap (Available with Zero Clearance Insulation)

Hood System Overview

NO MORE ROOFTOP FANS! Our Type 1 LBMUA-AV Integrated Exhaust/Supply Hood System w/ PrePiped ANSUL Fire Suppression for Concession/Food Trucks has built-in exhaust louvers and supply air is designed for use over cooking equipment to remove heat, smoke and grease laden vapors. Constructed of 18 Gauge 430 Stainless Steel with Stainless Steel Filters, Integrated Blower and Motor and Full Length Hanging Rails.

HoodMart® Systems GUARANTEED to Pass ALL State & Local codes.

All HoodMart® Commercial Exhaust Hood Systems are constructed from Heavy Gauge Steel, built to NSF & NFPA 96 Standards, ETL Listed & comply with UL710 Hood Standards.
