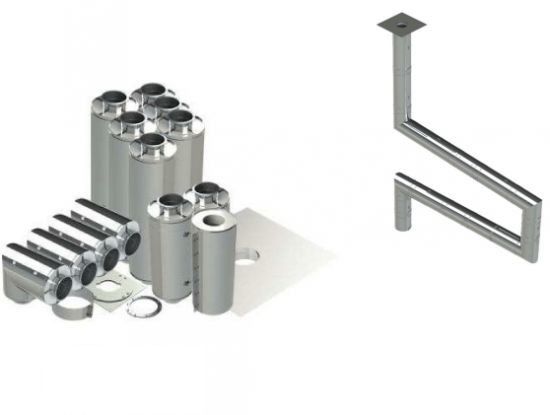

12" - Double Wall Kit, Reduced Clearance, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-RC-KIT06

UL Certified Logos

DUCTWORK INCLUDES:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 4'6" -5' 11"
  • Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5"
  • No weld hood and fan adapters
  • 6x 48" Fixed Length
  • 1x 36" Fixed Length
  • 3x 24" Fixed Length
  • 3 x 12" Fixed Length
  • 2x 24" Adjustable Length
  • 10 x Support Bands
  • 1 x Plate Support
  • 4x 87 Degree Elbows
  • 2x Inline Access Doors
  • 15 x 12LB Locking Bands
  • 15 x V Bands
  • 3 x J-600 Sealant
  • 400 Series Outer Duct Jacket and Inner Jacket
  • UL-1978 Listed
  • Limited Lifetime Warranty

FEATURES:

  • Double Wall Reduced Clearance
  • UL-1978 Listed Grease Duct
  • Made in USA
  • Overlapping flange connections
  • Adjustable lengths
  • 400 Series Outer Duct Jacket and Inner Jacket
  • Ceramic fiber insulation between inner/outer jacket
  • Limited Lifetime Warranty

DUCTWORK OVERVIEW

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL2221 and UL1978 Listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
